The Keychron Q10 is a 75% Alice‑style custom mechanical keyboard built for enthusiasts and professionals who demand premium materials, full programmability, and a dedicated rotary knob. Unlike standard QMK boards, the Q10 combines an ergonomic split‑angled layout with a solid CNC‑machined aluminum chassis, hot‑swappable sockets, and south‑facing RGB for broad compatibility with aftermarket keycaps. Available in both fully assembled and barebones kits, it caters to everyone from first‑time builders to seasoned keyboard modders.

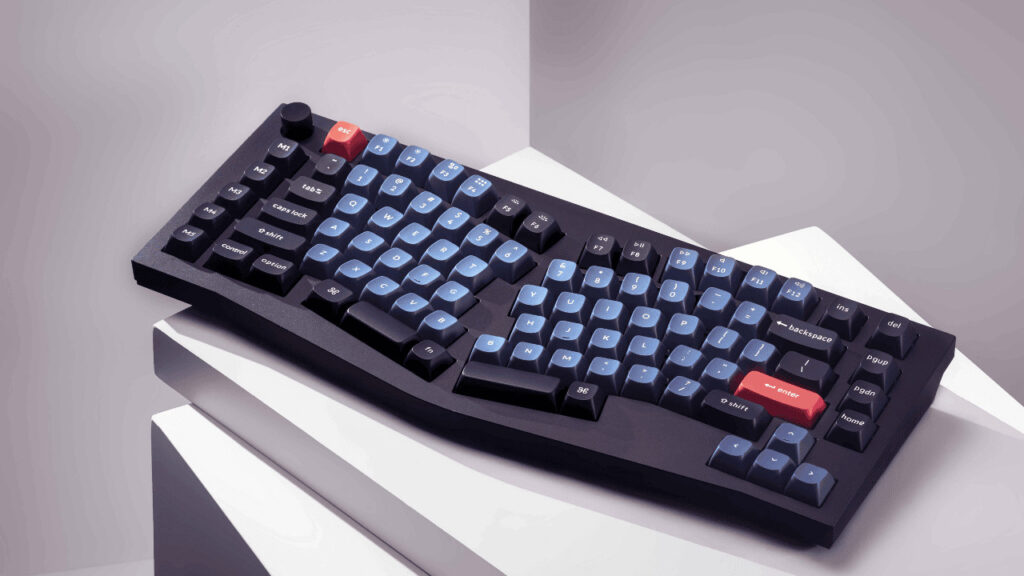

Design & Build Quality
- Alice‑Style, 75% Layout: The Q10’s “Alice” layout consists of two sections of alphanumeric keys split in such a manner that each section is angled and brings the hands into a more natural position, reducing the amount of wrist ulnar deviation. The 75% form factor retains dedicated arrow keys and navigation clusters while remaining desk‑space‑friendly.
- Full‑Metal CNC Case: Precision‑machined from a single block of aluminum (available in black or silver), the case provides exceptional rigidity, heft, and a satisfying acoustic “ping” when tapped.
- Gasket Mounting System: A dual‑gasket design isolates the plate from the case, introducing a gentle flex that softens bottom‑out and enhances typing acoustics without sacrificing stability.
Switches, Stabilizers & Keycaps

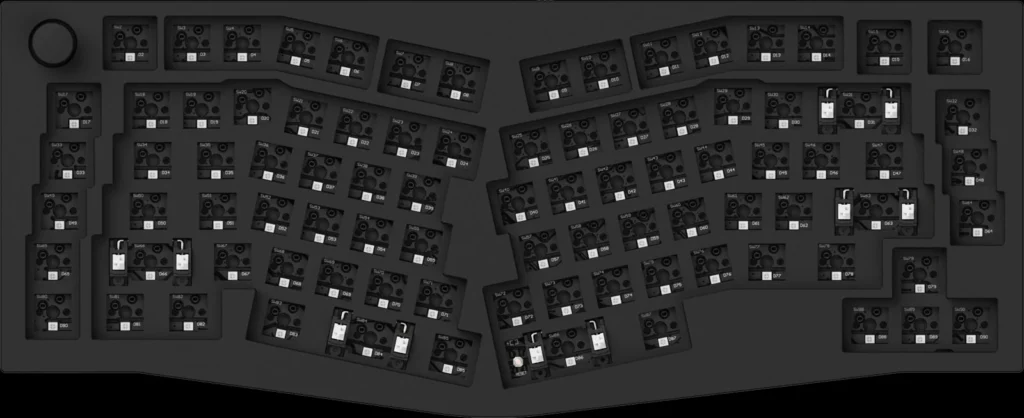

- Hot‑Swappable 3‑ or 5‑Pin Sockets: Change out Gateron, Cherry, Kailh or any other compatible switches without any soldering.
- Premium PCB‑Mounted Stabilizers: Plate‑mounted “snap‑in” stabilizers come pre‑lubed, minimizing rattle on larger keys (Space, Enter, Shift).
- Double‑Shot PBT Keycaps: Stock sets use an OSA profile with dual‑legends for macOS and Windows—dust‑ and shine‑resistant for long‑term durability.
Software, Knob & Customization
- Dedicated Rotary Knob: A metal encoder knob also located on the upper right can be used for volume, zoom, playback, brush size control, or even custom macros—great for video and audio editing workflows.
- QMK & VIA Support: Out of the box QMK firmware enables customization (key layers, tap dance feature, and RGB effects) to a great extent. For GUI enthusiasts, VIA mapping provides real‑time key remapping and macro creation with instant flash to the board.
- Dual Layout Profiles: A physical toggle switch lets you switch between Windows and Mac keymaps instantly, with separate lighting and macro profiles stored on‑board.
Connectivity, Ergonomics & Performance
- Wired USB‑C Only: Ensures 1 ms polling and full power delivery for the encoder—no battery management or wireless latency.
- Ergonomic Angle Kits: Two included feet sets (6˚ and 12˚) let you fine‑tune the typing angle to your preference.
- Acoustic Profile: The gasket mount plus south‑facing RGB produces a deep, muted “thock” that many typists find highly satisfying. The aluminum casing enhances the resonance, contributing to a sharp and high-end sound signature.
- Dimensions:
- Width: 156.9 mm
- Length: 385.3 mm
- Front height: 19.8 mm (no keycaps)
- Rear height: 33.4 mm (no keycaps)
- Feet height: 2.7 mm .
Pros
Cons
Conclusion
The Keychron Q10 Wired Custom Mechanical Keyboard stands out as a top‑tier choice for power users, designers, and avid typists. Its marriage of an ergonomic Alice layout, full‑metal construction, hot‑swap flexibility, and a programmable knob makes it both a joy to type on and a productivity enhancer. While the price tag leans toward the premium end and it’s strictly wired, for those seeking a high‑end, customizable desktop centerpiece, the Q10 delivers unmatched build quality and versatility.
