How to Install Switches on a Hot-Swap Keyboard: The Safe & Easy Guide

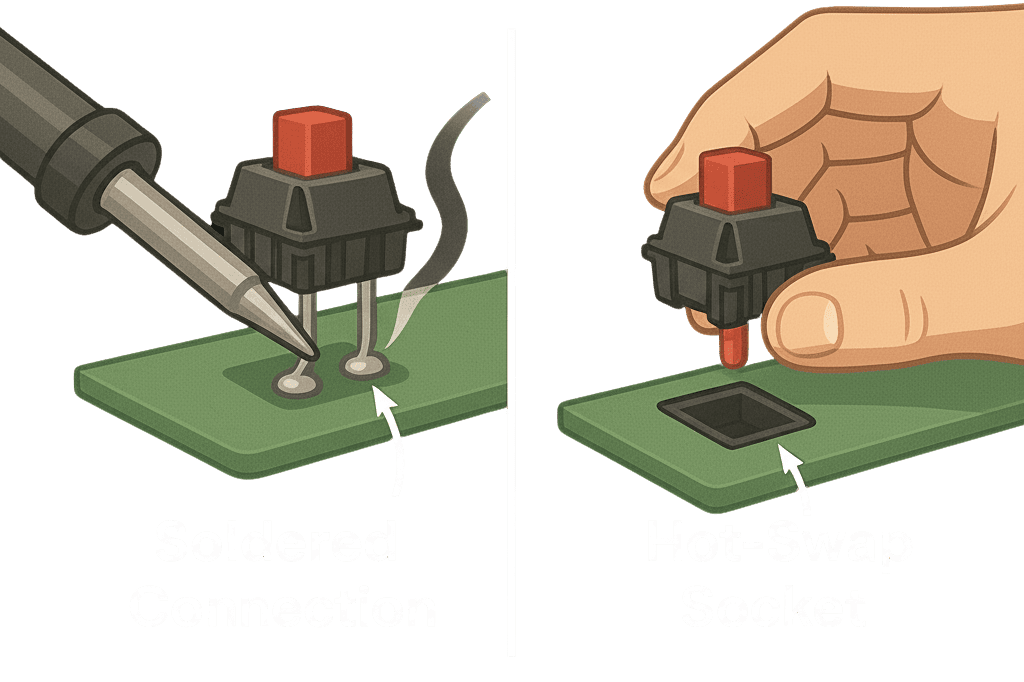

Mechanical keyboards used to have a frustrating barrier to entry. If you wanted to change the typing feel of your board, you needed a soldering iron, a steady hand, and the confidence to work directly on a live PCB. One small mistake a lifted pad or a cold solder joint could ruin the entire keyboard. For many enthusiasts, that soldering iron was the single thing standing between them and the perfect switch.

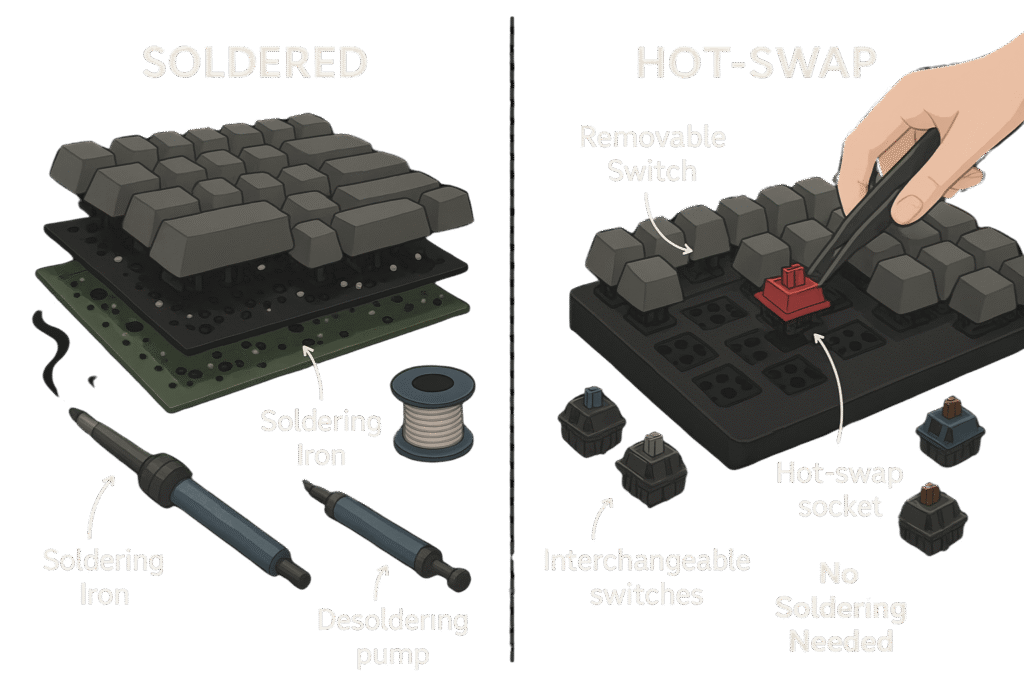

Hot-swap sockets changed everything. They allow you to remove and install switches without soldering, transforming what was once a technical project into a simple plug-and-play process. Instead of being locked into one switch type forever, you can now experiment with different feels and sounds in minutes.

However, “plug-and-play” doesn’t mean “careless.” Installing switches incorrectly can still lead to bent pins or, worse, damaged sockets.

This guide will show you exactly how to install switches on a hot-swap keyboard safely. Whether you are assembling a brand-new DIY kit or upgrading a pre-built gaming keyboard, you will learn the correct method to seat your switches firmly without forcing anything into place.

No soldering iron required just a careful process.

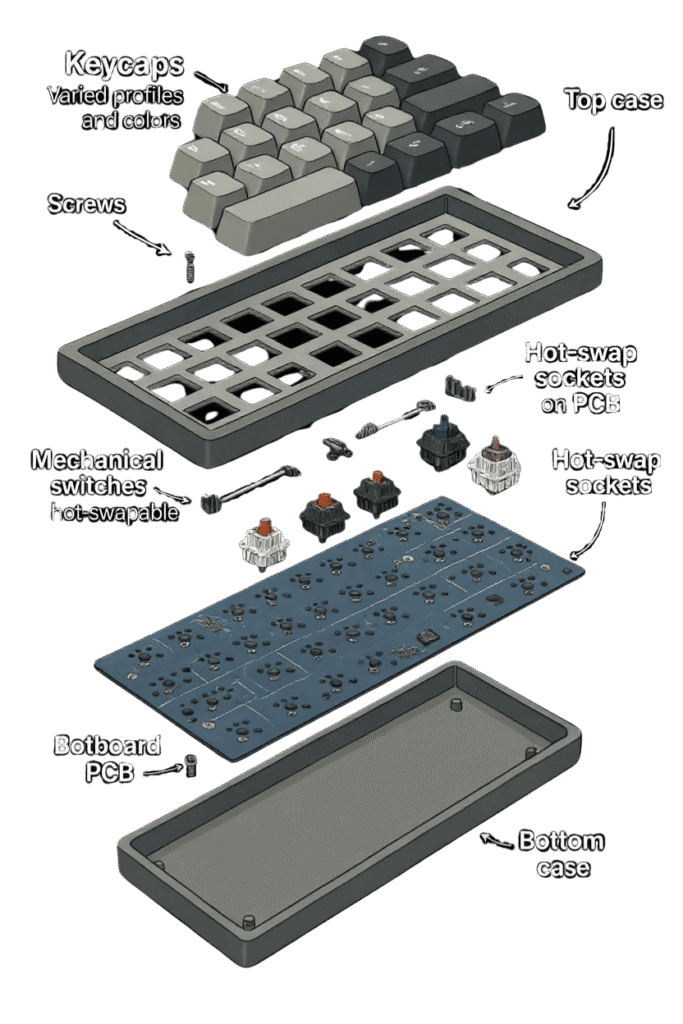

Confirm your keyboard is actually hot-swappable. Not all mechanical keyboards are. Check the product page or look for switch sockets visible through the PCB holes. If switches are soldered, stop here this guide isn’t for you.

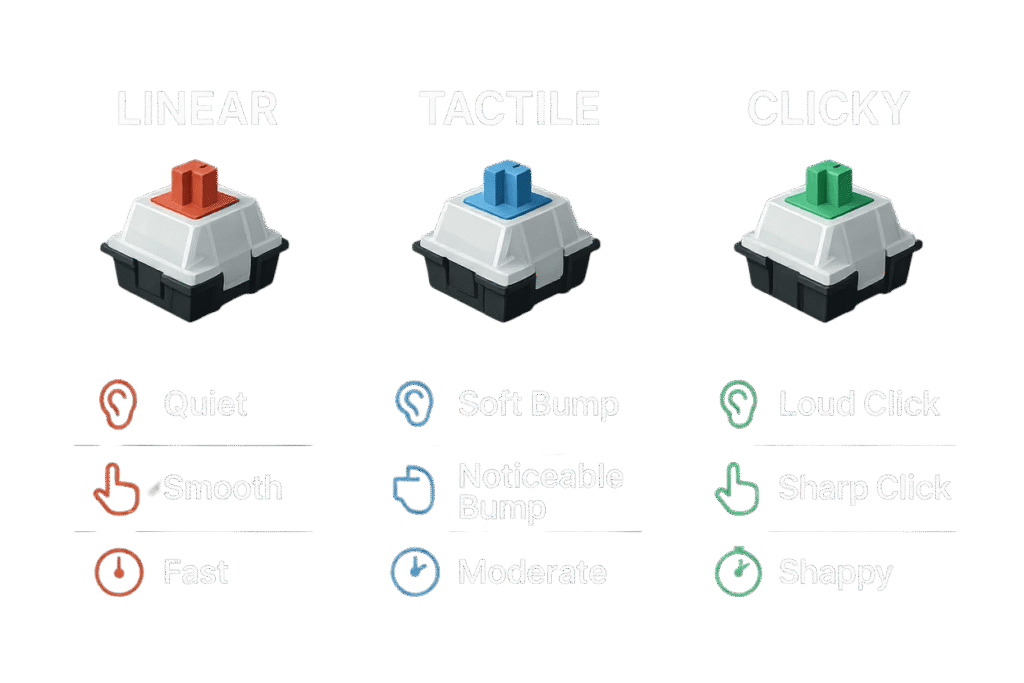

Almost any MX-style mechanical switch will work. Cherry, Gateron, Kailh, and most boutique brands share the same pin layout. If you bought switches marketed for mechanical keyboards, they’re almost certainly compatible.

Most switch installation failures happen before you insert the first switch. Skip these three steps and you’re asking for trouble.

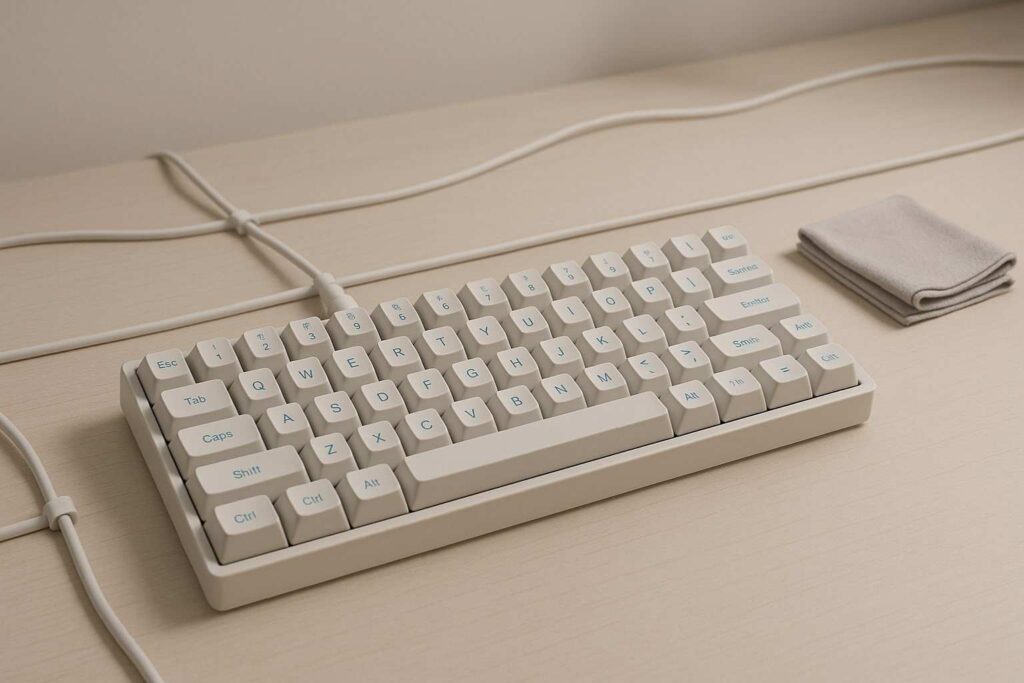

Unplug the keyboard completely. USB carries power, and inserting switches while connected risks shorting the PCB. Wireless boards? Remove the batteries or turn off the power switch if available.

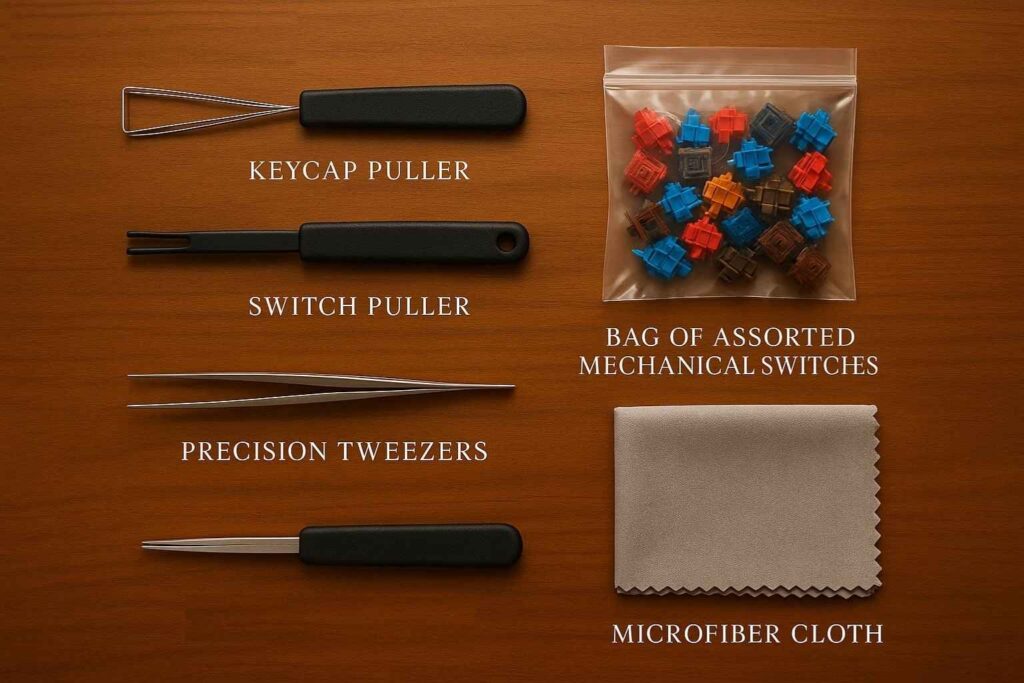

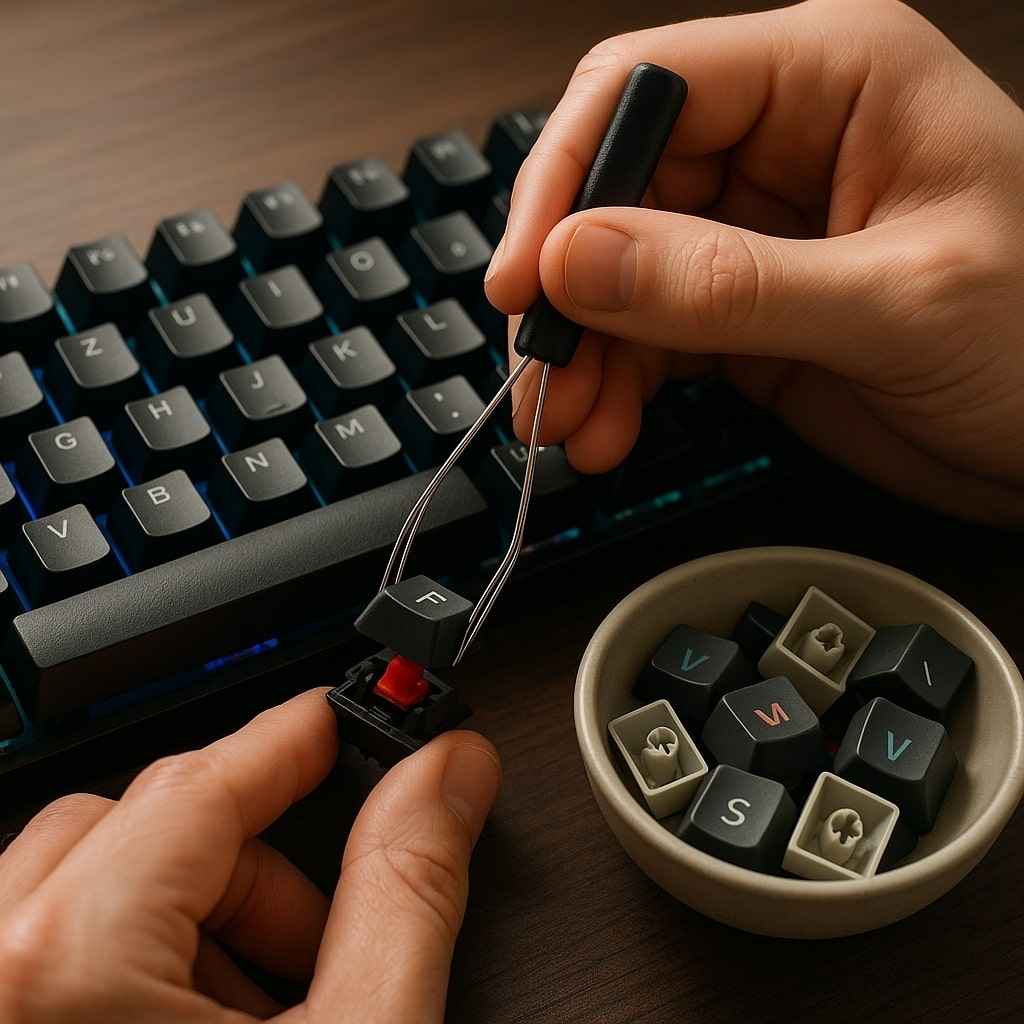

You cannot grip a switch properly with keycaps attached. Use a wire keycap puller to gently wiggle and lift each cap off the switches you plan to remove. Set them aside somewhere safe losing a keycap is surprisingly easy.

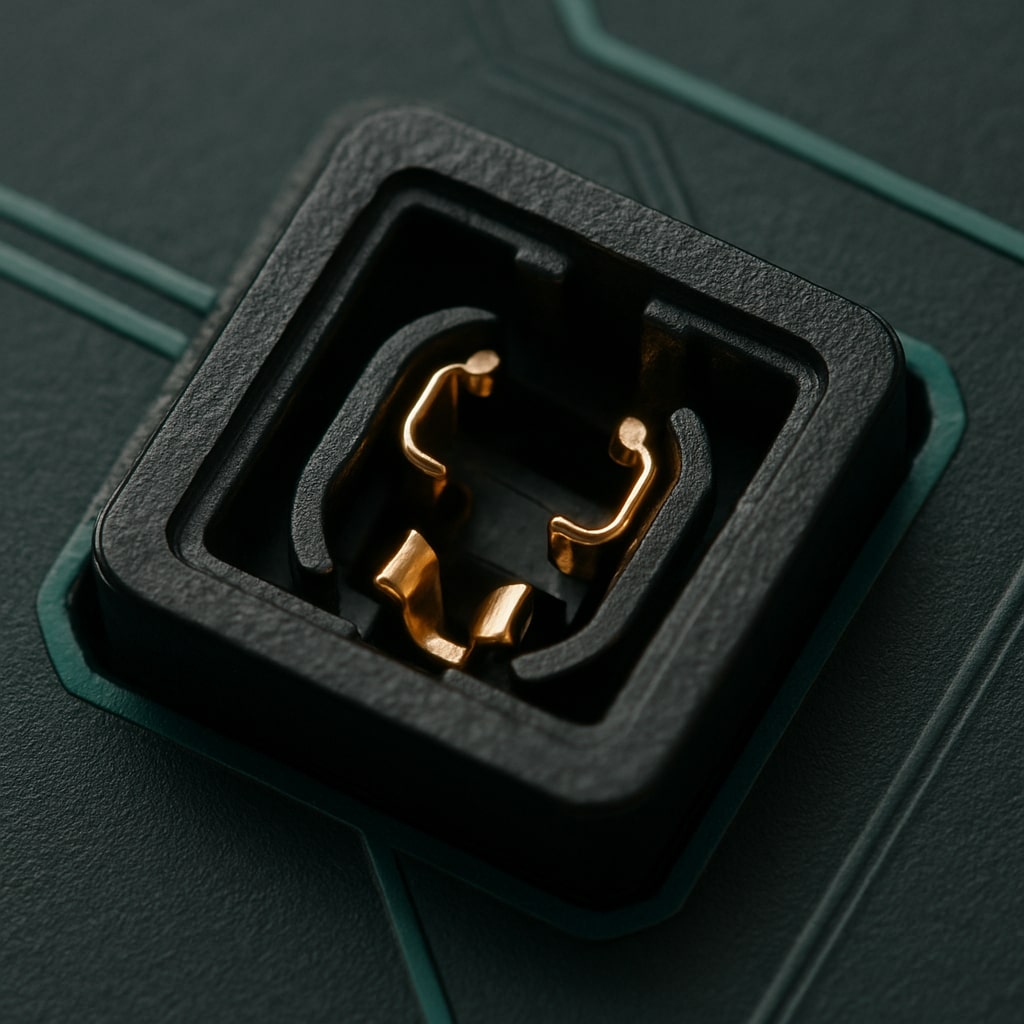

Shine a light into the empty switch sockets on the PCB. Look at the metal leafs inside they should be evenly spaced and centered. If you see bent or misaligned contacts, gently nudge them back with a toothpick before inserting a new switch. Inserting a switch into a misaligned socket can permanently damage the connection.

Bent pins are responsible for more “broken” keyboards than actual hardware failures. You push a switch in, it won’t seat, so you push harder. That bent pin folds further, or worse, breaks off inside the socket.

Look at the bottom of your switch. You should see two straight metal pins (and possibly two plastic alignment legs). They must be perfectly straight and parallel to each other. Even a slight curve can miss the socket hole.

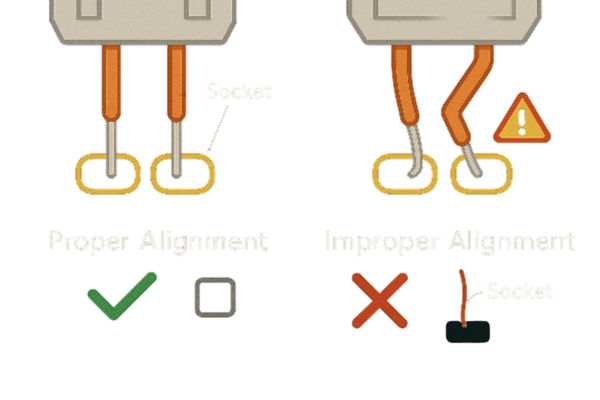

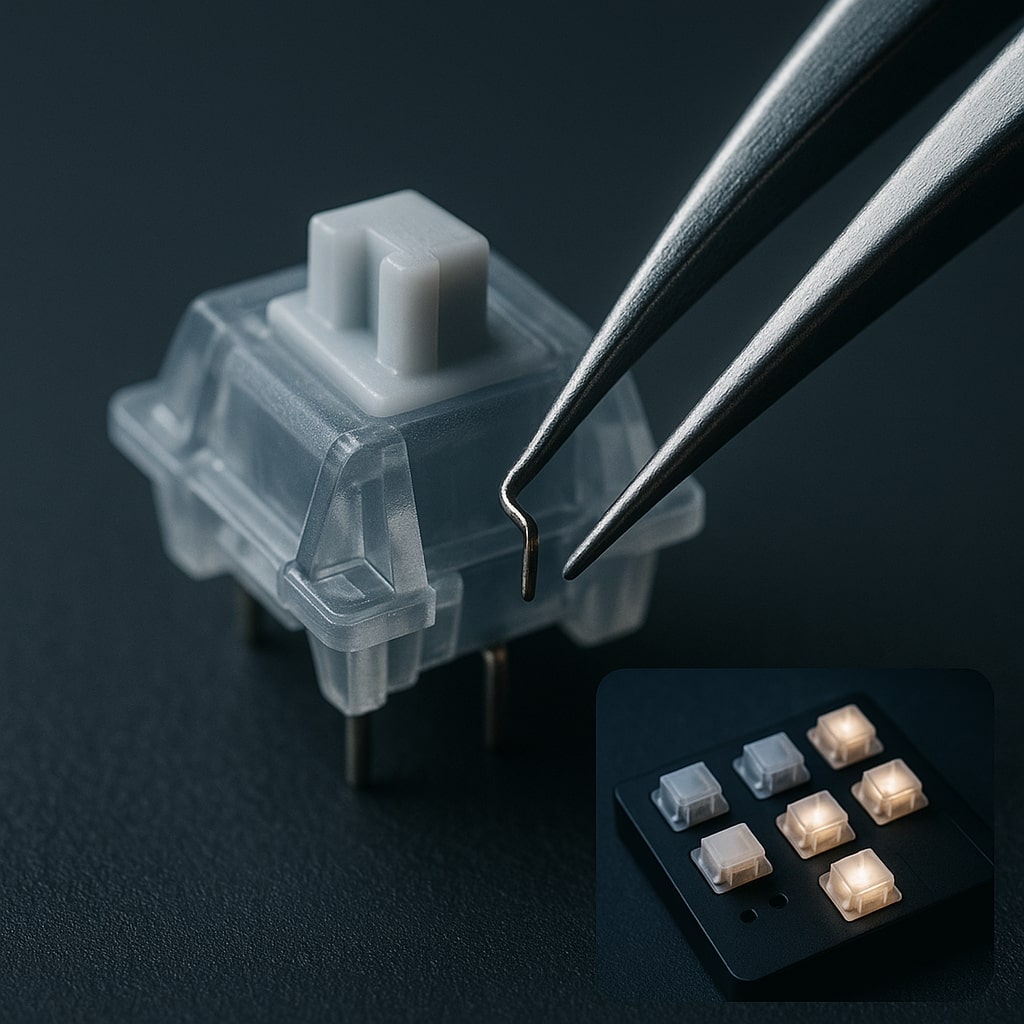

Straight pins vs a bent pin small misalignment can stop a switch from seating properly.

• For minor bends: Gently straighten the pin with your fingers. Apply slow, steady pressure quick movements can snap the pin.
• For severe bends: Use tweezers or small pliers. Work slowly from the tip back to the base until the pin runs straight.

The test: Place the switch on a flat surface. Both pins should touch the surface evenly. If one hovers, keep straightening.

This is the moment of truth. Follow these three substeps and you’ll have switches seated perfectly every time.

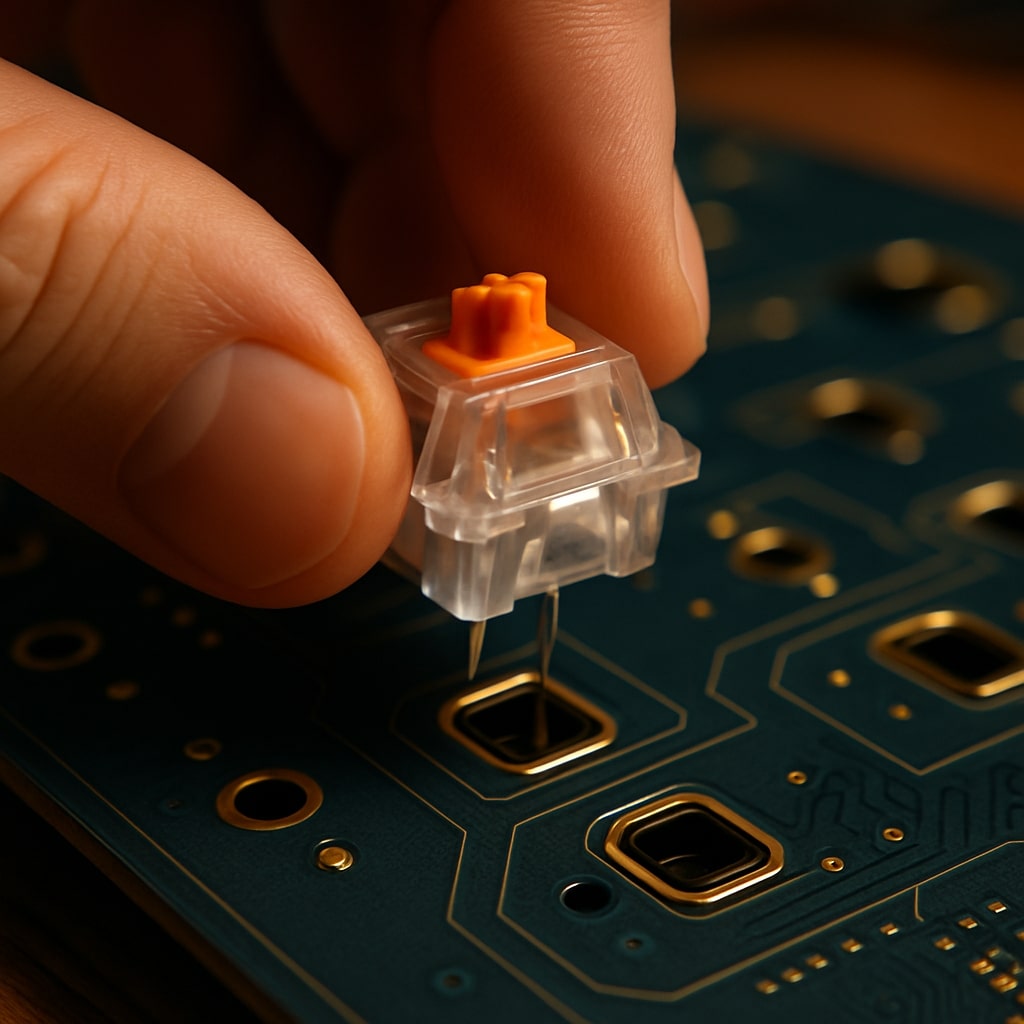

Hold the switch directly above the socket. Look straight down not from an angle. The two metal pins must line up with the small holes in the PCB, while the switch housing aligns with the plate cutout.

• The pins enter the PCB holes first.
• The plastic housing clicks into the plate second.
• If the switch wobbles or resists, stop. You’re misaligned.

Once aligned, push straight down with firm, even pressure using both thumbs. You should hear a subtle click and feel the switch settle into place.

• The sound: A clean click means the pins have fully seated in the socket.
• The look: The switch housing should sit completely flush against the plate. No gaps. No tilting.

If you meet resistance, stop immediately. Pull the switch out, re-inspect the pins, and try again. Forcing it bends pins or damages sockets.

Here’s the test that saves headaches later. Gently tug upward on the switch using your fingernails or a switch puller.

Three steps to a properly installed switch: locate the socket, align the pins, and press until flush.

• If it comes out easily: It wasn’t fully seated. Realign and press again.
• If it stays locked in: Congratulations. It’s installed correctly.
• If one side lifts but the other stays: You pressed unevenly. Remove and restart.

Even with careful installation, things can go wrong. Here’s how to handle the three most common issues.

The Problem: You’re pushing, but the switch stops halfway and refuses to seat.

The Fix: Stop pushing immediately. Forcing it will bend a pin or crack the socket. Pull the switch out and inspect the pins. One is almost certainly bent. Straighten it with tweezers or your fingers and try again.

If the pins look straight but the switch still won’t seat, check that the plate holes align with the PCB sockets. Sometimes a plate shifts slightly during shipping.

The Problem: The switch feels seated, but pressing it does nothing. No keypress registers.

The Fix: Two likely culprits:

1. Bent pin underneath: Even a slight bend can miss the socket contact. Remove the switch and inspect both pins carefully. Straighten and reinstall.
2. Socket leaf is spread open: The tiny metal contacts inside the socket may have been pushed apart. Use a toothpick or tweezers to gently squeeze them back together. If the socket looks damaged or the leaf is broken, the PCB may need professional repair.

Test the socket before reinstalling: Use tweezers to touch the two metal contacts inside the empty socket. If the computer registers a keypress, the socket is fine and the switch is the issue.

The Problem: You pulled a switch and the plastic socket housing lifted off the PCB. This is the moment that makes your heart stop.

The Fix: Don’t panic. Assess the damage:

• If the socket is still attached by wires or traces: It’s loose but not broken. Carefully press it back down onto the PCB. It should click or snap into place. Test with a known working switch before reassembling.
• If the socket tore off completely (pads lifted): This requires soldering or professional repair. A local electronics shop or keyboard community member can often fix this for a small fee. If you’re not confident with soldering, do not attempt it yourself.

Why this happens: Usually from pulling the switch at an angle instead of straight up. Always use a wire switch puller and pull evenly on both sides of the switch.

When shopping for switches, you’ll see terms like “3-pin” and “5-pin.” Beginners often buy 5-pin switches only to discover their keyboard was designed for 3-pin. This creates panic but it’s usually an easy fix.

3 pin vs. 5 pin switch bottoms. The 5 pin version has two extra plastic legs for PCB stability.

The Solution: Can You Use 5-Pin Switches in a 3-Pin Board?
Yes, almost always. The two extra plastic legs are simply for stability. If your board has a plate (most do), those extra legs have nowhere to go but you can clip them off.

1. Use flush cutters or small nail clippers.
2. Identify the two extra plastic legs (they’re on opposite sides of the center post).
3. Snip them flush with the bottom housing.
4. The switch now functions exactly like a 3-pin switch.

The Reverse: Can You Use 3-Pin Switches in a 5-Pin Board?
Yes, but you lose the extra stability. If your board has no plate (plateless design), 3-pin switches may wobble. For most plated boards, it’s fine.

If your keyboard uses a plate, the extra plastic legs are redundant. Clip them with confidence you won’t affect performance or sound.

Installing switches on a hot-swap keyboard seems intimidating at first, but the process comes down to three simple rules:

1. Inspect first – Check every switch for bent pins before insertion.
2. Align carefully – The pins must enter the PCB holes before the housing clicks into the plate.
3. Press firmly, but don’t force – If it doesn’t seat easily, stop, pull it out, and investigate.

Once you understand these fundamentals, swapping switches becomes a quick, satisfying process. You can experiment with different feels, sounds, and typing experiences without touching a soldering iron.

Now that you know how to swap switches, the real fun begins: finding the perfect ones for your typing style.

Ready to explore your options? Check out our guide on the [Best Switches For Mechanical Keyboards] to discover what matches your preferences whether you want silent linear switches for the office, creamy thocks for deep satisfaction, or crisp clickies for that vintage feel.
