Keychron V10 Max Wireless Mechanical Keyboard – Detailed Review

The Kyechron V10 Max is an advanced custom mechanical keyboard with two wireless functionalities, which includes the Bluetooth 5.1 technology. Built for comfort and productivity, its intricate design also includes a full QMK/VIA programmable feature alongside a gasket mount design. Integrated into its compact chassis is a sleek 2.4 GHz RF wireless option.

Design & Build Quality

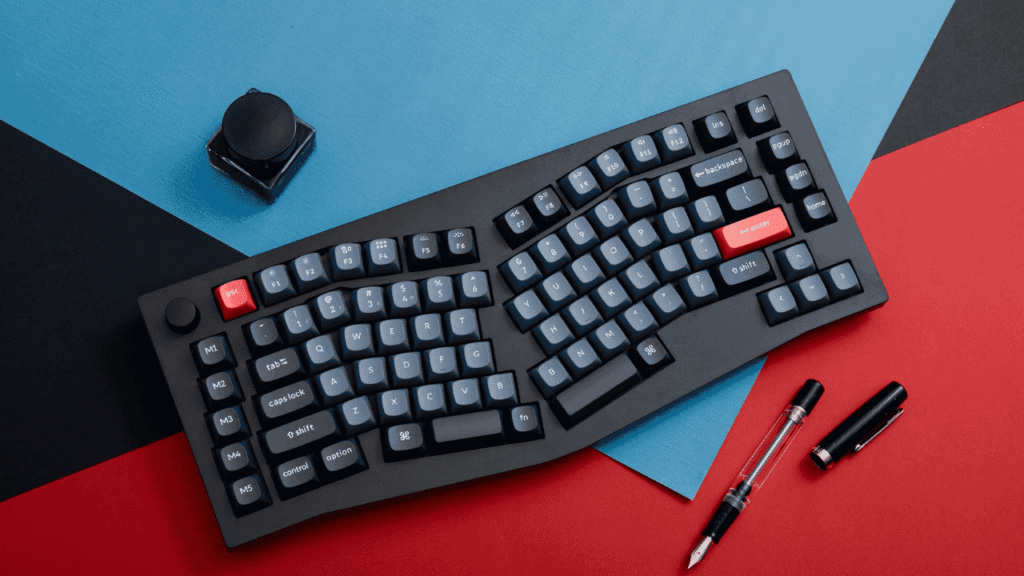

  • Alice‑Style 75% Layout: The divided, slanted alphanumeric portion helps to pivot hands into a more comfortably aligned position reducing ulnar deviation.
  • ABS Plastic Chassis with PC Plate: Gasket mounting offers benefits such as rigid lightness—a gentle flex improves acoustic properties.

  • Included Tilt Feet: You can now set your typing slope to three angles: 3.5°, 7.5°, and 9.5° which will enhance your ergonomic comfort.

Wireless Connectivity & Battery Life

  • 2.4GHz (1000Hz Polling) & Bluetooth5.1: You can now seamlessly switch between 2.4 GHz ultra responsive RF for gaming and stable Bluetooth for multi device switching with Bluetooth 5.1.

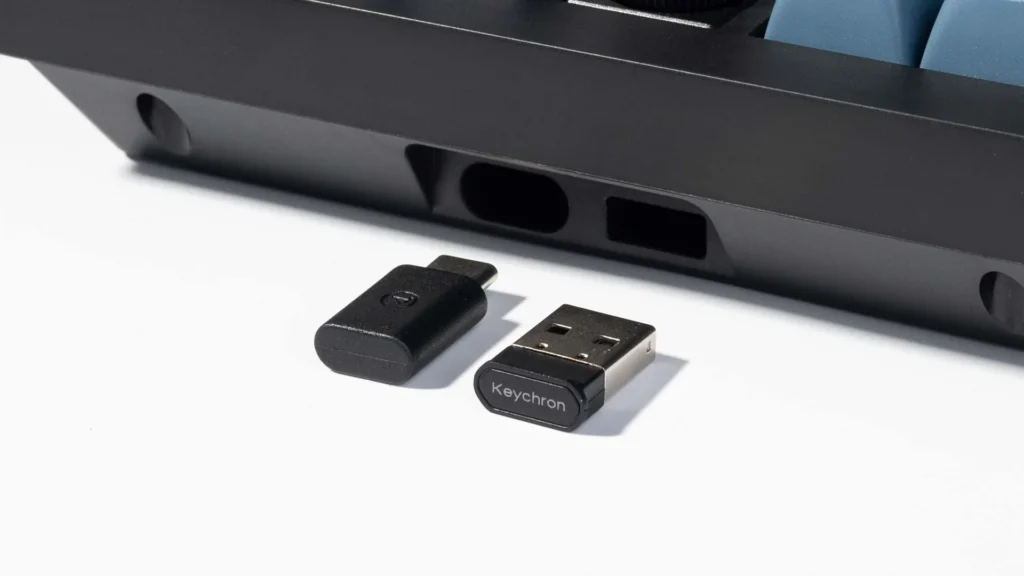

  • Dual USB Receivers & Magnetic Storage: Both Type C and Type A dongles stow away in a magnet-secured nook on the upper corner of the device.

  • 4,000mAh Battery: Increased efficiency is seen by the keyboard providing ~225 hrs of usage with the backlight off. In comparison, with RGB lighting set to its lowest setting, ~100 hrs of usage is expected per charge.

Switches, Stabilizers & Keycaps

  • Hot‑Swappable Sockets (3/5‑pin): You can now conveniently change any Gateron, Cherry, and Kailh switches without having to solder them.

  • Pre‑lubed, Screw‑In PCB Stabilizers: Minimize rattle on larger keys (Space, Enter, Shift) for a stable, smooth feel.

  • OSA Profile Double‑Shot PBT Keycaps: These legends in macOS and Windows layouts are oil resistant, ensuring durability, and retain texture and clarity over time.

Software & Customization

  • QMK Firmware: Full open‑source support for layers, macros, tap‑dance, and advanced lighting effects.

  • Keychron Launcher (VIA‑Compatible): Key features include an intuitive web-based GUI for macro creation alongside live key, macro, and RGB color remapping. This allows for real time changes with no downloads necessary.

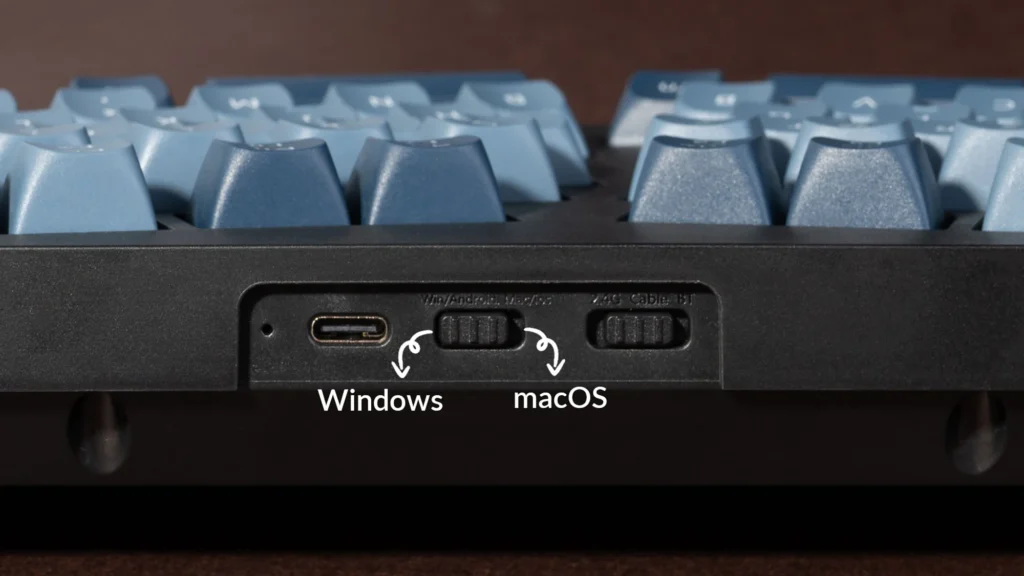

  • Dual OS Profiles: A physical Windows/macOS toggle switch plus on‑board memory store separate layouts and lighting setups per OS.

Ergonomics & Typing Experience

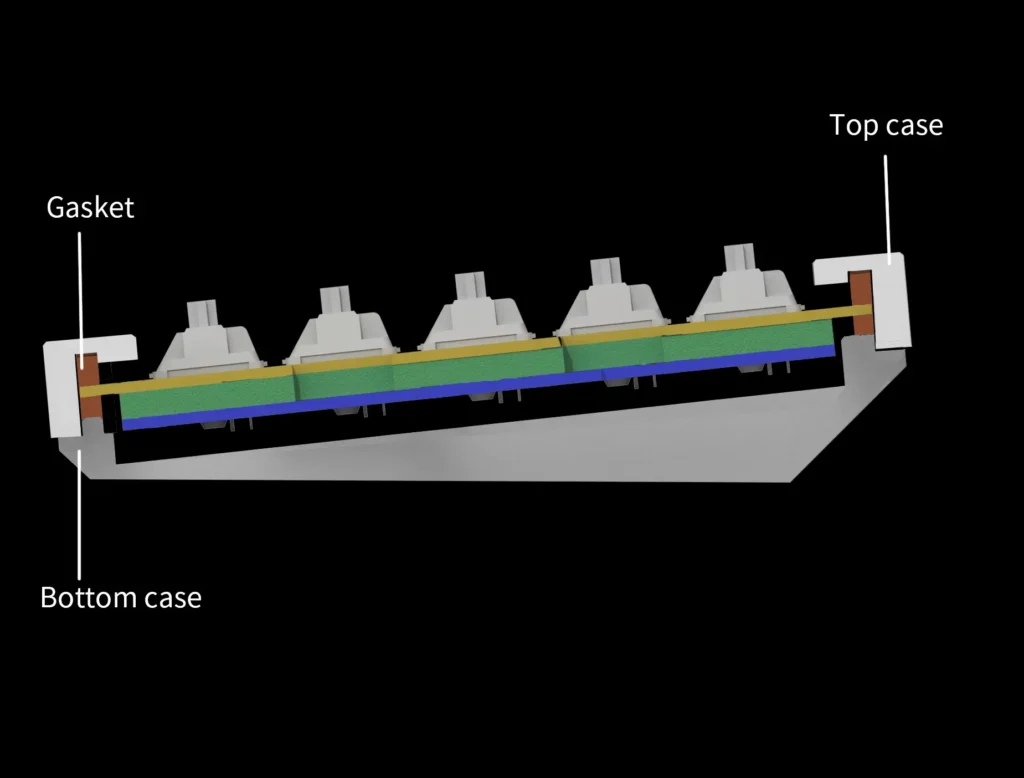

  • Gasket‑Mount Design: The soft touch mechanics provides a cushioned finger experience while bottoming out the keys—diminishing finger fatigue and noise.

  • Alice‑Style Split Angle: Encourages a neutral wrist posture, which many users find more comfortable for long typing sessions.

  • Acoustic Foam: Soft internal sound absorbing foam reduces hollowness which enhances the satisfying thock sound signature.

Lighting & Aesthetics

  • South‑Facing RGB LEDs: Positioned to minimize shine‑through on PBT caps and improve compatibility with aftermarket profiles.

  • Clean Bezel Lines: Low‑profile frame maximizes desk real estate while showcasing the keyboard’s angular “Alice” silhouette.

  • Color Options: Offered in Carbon Black (as shown) with additional custom keycap sets and artisan knobs available.

⚙️ Technical Specs

FeatureSpecification
SwitchesGateron Jupiter (Red, Brown, Banana)
LED LightingSouth-facing RGB
Battery4000 mAh Li‑Polymer
Battery LifeUp to ~225 h (no backlight), ~100 h (with RGB)
MCUARM Cortex‑M4 with 256 KB flash
NKROFull N-key rollover in wired & 2.4 GHz; 90 Hz polling in BT mode
Layout Size88 keys (75 %)
ConnectivityUSB‑C, 2.4 GHz with dual dongles, Bluetooth 5.1

Pros

  • Ergonomic Alice‑style split layout
  • Dual wireless (2.4 GHz & Bluetooth 5.1) + wired
  • Hot‑swappable switches & screw‑in stabilizers
  • Full QMK/VIA programmability & dual OS profiles
  • Gasket‑mount with acoustic foam for premium “thock”

Cons

  • No dedicated numpad
  • Slightly steep learning curve for QMK
  • Backlit use reduces battery life

Conclusion

The Keychron V10 Max positions itself as a hybrid ergonomic and multifunctional keyboard for both leisure and productivity. It is distinguished by its wireless convenience, premium construction, and extensive customization which makes it deeply preferred by enthusiasts, programmers, and creatives. Its lack of a numpad and an aligned with a premium priced tag, tends to make it a purchasable option but given the level of comfort it offers along with other ergonomic features, it provides great worth to high-end mechanical keyboard seekers.
