The Keychron Q3 Max is an 80 percent (TKL) wireless custom mechanical keyboard aimed at enthusiasts who demand premium build quality, robust wireless performance, and fine‑tuned acoustics in a ready‑to‑use package. With an all‑aluminum chassis, gasket‑mount design, multi‑device pairing, and QMK/VIA support, it stands out as one of the most versatile TKL boards on the market.
Design & Build Quality
- Full‑Metal Chassis: CNC‑machined 6063 aluminum body in black or off‑white options provides near-zero flex and a hefty, premium feel that reviewers liken to a “load‑bearing beam”.
- Double Gasket Mount: Combines silicone pads between the top and bottom cases with plate gaskets, reducing metal‑on‑metal resonance and yielding a softer, more muted typing sound.
- Slim Profile & Angle: Measures 14.4 × 5.4 × 1.3 inches with a factory‑set 5.2° typing angle; lacks adjustable feet but achieves ergonomic tilt through its low‑profile design.
Layout & Mounting System
- 80 % TKL Layout: 87‑key design retains arrow keys and function row, offering a middle ground between compact 60 percent and full‑size boards.
- Double Gasket & Plate: The PC‑material plate sits atop two layers of IXPE/PET/latex acoustic foam, further dampening hollow chamber echoes and delivering a deep, satisfying “thock”.
Switch Options & Hot‑Swap Capability
- Gateron Jupiter Switches: Available pre‑installed in Red (linear), Brown (tactile), or Banana (tactile) variants rated for 50 million actuations.

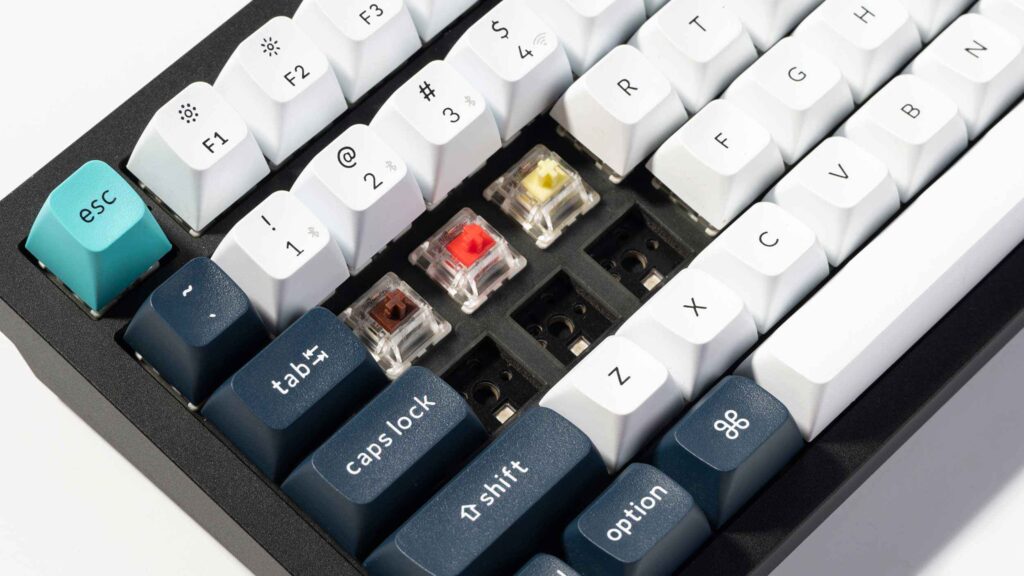

- Hot‑Swappable Sockets: Supports both 3‑pin and 5‑pin MX‑style switches, enabling easy experimentation with any Cherry‑compatible switch without soldering.
Acoustic Dampening & Sound Profile
- Seven Layers of Foam: Includes IXPE, PET, and latex sheets plus silicone pads, out‑classing many competitors by mitigating ping, echo, and spring noise.
- Plastic Plate Choice: Avoids “pingy” metal plates in favor of PC plastic, enhancing the board’s natural muffled clack and reinforcing its acoustic tuning.
Keycaps & Stabilizers
- Double‑Shot PBT Keycaps: OSA or OSA‑side‑printed profiles resist shine and wear; side‑printed legends allow under‑cap RGB to glow through without compromising durability.
- Screw‑In PCB Stabilizers: Factory‑lubed metal stabilizers eliminate spacebar wobble and contribute to the keyboard’s solid, premium feel.
Connectivity & Battery Life
- Triple‑Mode: 2.4 GHz wireless (1,000 Hz polling), Bluetooth 5.1 (90 Hz), and USB‑C wired (1,000 Hz) cover every use case.
- 4,000 mAh Battery: Provides up to 180 hours of typing (backlight off) or 100 hours with RGB; full recharge in ~5 hours.
- Multi‑Device Pairing: Pair up to four devices wirelessly and switch between them seamlessly via shortcut.
Software & Customization
- QMK/VIA Firmware: Open‑source support enables deep remapping, macro programming, and lighting customization without vendor software.
- Onboard Memory: Store up to three profiles directly on the keyboard for plug‑and‑play portability.
What’s in the Box
- Keychron Q3 Max Keyboard (87 keys, fully assembled)
- USB‑C to USB‑A Cable (1.8 m) + Type‑A adapter
- Keycap & Switch Pullers
- Extra Silicone Foam Sheets
- Quick‑Start Guide & Warranty Card
Technical Specifications
| Specification | Detail |
| Layout | 80 percent (87 keys) |
| Dimensions | 365 × 137 × 19.7 – 32.6 mm |
| Weight | 2,045 g (assembled) |
| Body Material | CNC‑machined 6063 aluminum |
| Plate Material | PC |
| Mount System | Double gasket |
| Switches | Gateron Jupiter (Red/Brown/Banana) |
| Hot-Swappable | Yes (3‑pin & 5‑pin MX) |
| Keycaps | OSA / OSA side‑printed double‑shot PBT |
| Stabilizers | Screw‑in PCB, factory‑lubed |
| Connectivity | USB‑C wired, 2.4 GHz wireless, Bluetooth 5.1 |
| Polling Rate | 1,000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
| Battery | 4,000 mAh li‑polymer; 5 hr full charge; 100 hr RGB |
| Firmware | QMK / VIA |
| Operating Systems | macOS, Windows, Linux |
| Backlight | South‑facing RGB LEDs; 22 built‑in modes |
| N‑Key Rollover | Yes (wired & wireless) |
Pros
Cons
Conclusion
The Keychron Q3 Max Wireless Custom Keyboard features a full TKL form factor with open source firmware features, alongside an all encompassing TKL shape . It has outstanding excel typing feel sound profile and sound profile enabling seamless connecting options. Priced as a top custom board, it easily fits the needs of enthusiast and chefs. With warm pcbs and snap in premium switches, or taken out of the box, the Q3 Max provides a experience that outshines prebuilt keyboards.
